Assignment 1

Due Date: TBA

Reading

Getting Started: Download assign1_programs from the download directory

• set the Current Directory to be your assign1_programs folder (that you renamed) on your Desktop
• open .m files from this folder in the MATLAB editor, or create your own files from scratch
• execute .m files in the Command Window
• make changes to code files, save them, and execute the modified files

When you are done with this assignment, you should have three code files stored in the assign1_programs folder that you renamed: golden.m, bullseye.m and stars.m.

Exercise: The Golden Ratio

The file golden.m contains two assignment statements that create two vectors that each store 10 measurements obtained from the arms of 10 very accommodating friends. The variable hands stores measurements of their hand length (in inches), in increasing order. The variable forearms stores the corresponding forearm lengths. These statements have a semi-colon at the end, so the values are not printed in the MATLAB Command Window when the code is executed. In this exercise, you will expand the golden.m code file in multiple steps. After completing each step, save the modified file and execute the new code by entering the command golden in the Command Window. To begin, open the golden.m file in the editor.

(a) Plot the data

Add a call to the plot function to display a graph of forearm length vs. hand length (i.e., plot hand length on the x axis and forearm length on the y axis). If the ratio of these two lengths is roughly the Golden Number Phi, how should your graph appear?

(Optional) If you add the following command after your call to the plot function, the values on the x and y axes will be plotted on the same scale, which means that the physical distance on the screen that is spanned by one unit on the x axis is the same physical distance spanned by one unit on the y axis:

   axis equal

(b) Create a vector of forearm:hand ratios

Add a single assignment statement that creates a new vector of 10 ratios, obtained by dividing each forearm length stored in forearms by its corresponding hand length stored in hands.

(c) Plot the ratios

Use the plot function to display a graph of the ratios generated in Part (b). The ratios can be plotted on the y axis. Draw this graph in a new figure window by placing the figure command before the second call to the plot function. When you now execute your code, two figure windows will be drawn on top of one another and can be dragged apart with the mouse.

Important note: After executing your new code and viewing the results, close the figure windows before executing your code again! Having an excessive number of open windows can sometimes cause code to execute improperly. You can close each window by clicking on the close box in the upper right corner of the window. You can close all of the figure windows at once by executing the following command in the Command Window:

   >> close all

(d) Calculate the mean ratio

Calculate the mean, or average value of the ratios computed in Part (b) and assign a variable to this mean value. Do not use the built-in mean function (although it's OK to use mean to check your answer). What are we hoping this mean value to be?

(e) Add the mean ratio to the graph

Using plot again, add a horizontal line to the graph that you created in Part (c), whose height is the mean ratio. Set the color of this line to be different from the default blue color of the graph of ratios. To add a second plot to an existing graph, place the following command before the next call to plot:

   hold on

To create the coordinates of points to draw the horizontal line, keep in mind that the plot function only needs two points to draw a line! Also note that the names of variables can be placed inside an assignment statement that creates a vector of values, as illustrated in the following code:

    num = 3
   moreNums = [num 2*num 3*num]

(f) Measure your forearm and hand lengths and add your ratio to the graph

With a ruler, measure the length of your own forearm and hand (to see how these distances are determined, see the picture at the end of The Human Hand page). Add two assignment statements to your code that each use the input function to ask the user to enter their forearm length and hand length, and assign each of the user's inputs to variables. Compute the ratio of the user's forearm to hand length, and assign this ratio to a new variable. Finally, draw a horizontal line on the graph with a new color, whose height is the ratio computed for the user's (your) arm.

After adding this final line, add the following statement to your code so that future graphs are not drawn on the same figure:

   hold off

(g) Add labels to your graphs

Use the functions xlabel, ylabel and title to add labels to the two graphs that you created.

(h) Add a text label to your ratio line

Use the MATLAB function text to add a text label (e.g. 'My ratio') to the line that shows your ratio.
text works like this:
text(xpos, ypos,'your text here');
places 'your text here' at position (xpos, ypos) in your plot.

(i) Add comments to your code

You'll notice that there are some comments at the beginning of the code file that provide the file name and a brief description of what the program does. Add a comment near the beginning that includes your name and the last date on which you modified the code. Then add a few additional brief comments throughout the code that summarize groups of statements that implement each major task. For example, you might add a comment like "compute and display the mean ratio" prior to the sequence of statements that you added for Parts (d) and (e). Comments like this are helpful to other people who read your code and also help you to remember what you did if you need to modify the code sometime in the (distant) future. Comments that appear at the beginning of a script file are printed by the help function:

   help golden

Congratulations! You have now completed your first substantial MATLAB program!

In this problem, you will practice your new MATLAB skills by creating a picture of concentric circles like the one shown below:

The code for making this picture should be placed in a file named bullseye.m that you create from scratch and store in your assign1_programs folder (that you renamed). The easiest way to start a new code file is to type the edit command in the Command Window, followed by the first name of the file that you want to create:

    >> edit bullseye

A pop-up box will appear that tells you that the file bullseye.m does not exist and asks if you want to create it. Click on the Yes button and an empty window for entering your code will appear in the Editor. Type a couple comments at the beginning of the file with the name of the file, your name, and the current date, and you'll be ready to start working on creating your picture. Similar to what you did to complete Exercise 1, it will help to proceed in stages.

(1) Draw a single circle

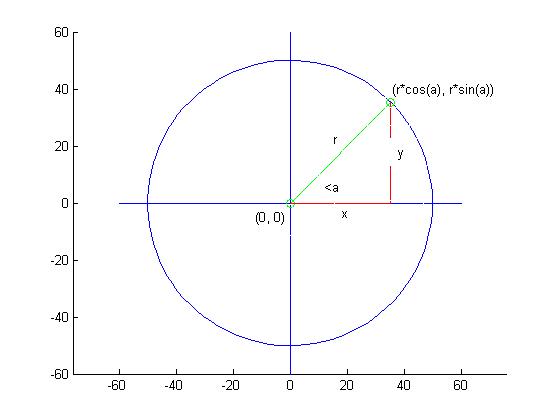

To draw a circle, you can use the plot function to draw a curve that connects a set of equally spaced points around the circumference of the circle. The x and y coordinates of each point can be defined in polar coordinates as illustrated in the figure below. r is the radius of the circle and a is the angle between the x axis and the line connecting the origin to a point on the circle (shown in green). The coordinates of the point on the circle are given by the following expressions:

      x = r * cos(a)       y = r * sin(a)

The sin and cos functions require the input angle to be given in radians. Click here for a quick review of trigonometry and generating points about a circle. There is a special constant pi whose value is π (3.14159...) that is helpful for generating angles in radians. The input to the sin and cos functions can either be a single angle or a vector of angles. When a vector of angles is given, these functions generate a vector of sine and cosine values for all of the angles in the input vector.

With this background in mind, generate the x and y coordinates for points on the circle by first creating a vector of equally spaced angles from 0 to 2π, and then using the expressions above to compute the x and y coordinates from the vector of angles. The bullseye picture shown above was created using 50 equally spaced angles around the circle, but you can vary this number. You also need to specify a value for the radius of the circle. The picture above uses radii of 25, 50, 75 and 100, but you can use other values for the four radii. Draw the circle with the plot function and observe your results - it may look more like an oval than a circle! To make the curve appear as a true circle, add the axis equal command.

(2) Draw three more circles

To draw three more circles, repeat the computation of the x and y coordinates with three other values for the radius, and plot each new circle. The same vector of angles can be used to generate points for all three circles - only the coordinates need to be changed. Be sure to add the hold on command before plotting the second circle, and the hold off command at the end of your code. Add color, linestyles and markers to each call to the plot function so that each circle is displayed with a different color, linestyle and marker. Set the range of values that are displayed on the axes so that there is white space all around the largest circle. This can be done by calling the axis function with an input that is a vector of four values corresponding to the minimum and maximum x values to plot, and the minimum and maximum y values:

   axis([xmin xmax ymin ymax])

(3) The finishing touches

Use the xlabel, ylabel and title commands to add labels and a title to the figure, and add some comments to the code that include the name of the file, your name, and the date at the beginning of the file, and describing what is done by the major parts of the code.

Note: For your final submission, you do not need to hand in a hardcopy of your picture, only a copy of your bullseye.m code file.

Problem 2: Star Light, Star Bright

Astronomists have modeled the relationship between luminosity, size and temperature using the following equation:

    L_star/L_sun = (R_star/R_sun)² (T_star/T_sun)⁴

where L_star/L_sun is the ratio between the luminosity of a particular star and the luminosity of the sun, and R_star/R_sun and T_star/T_sun are similar ratios for the size and temperature of the star relative to the sun. The following table provides data on the ratios L_star/L_sun and R_star/R_sun, and the temperature values for a set of stars. The aim of this problem is to determine how well the above model fits the observed data¹.

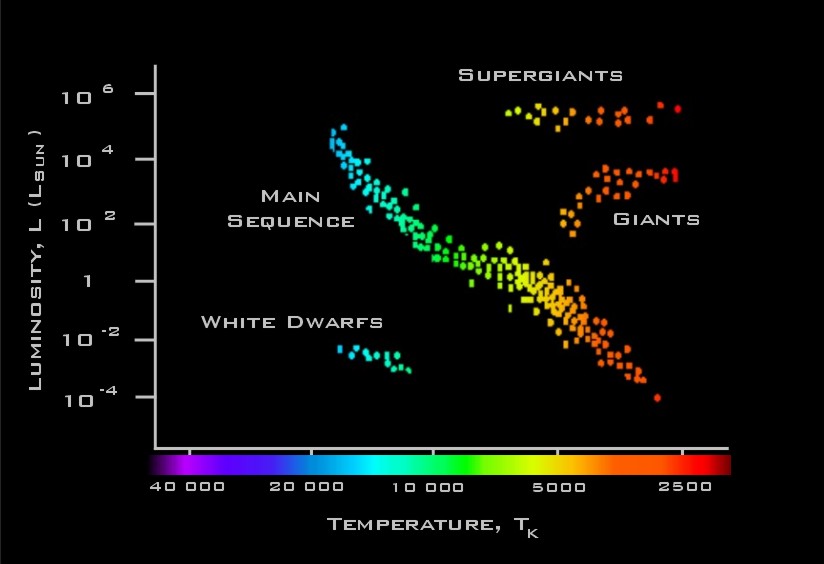

Write a MATLAB script named stars.m that creates an H-R diagram from the above data and model, and quantifies the deviation between the two. In your script, create a single figure that contains two line plots corresponding to the data and model predictions. Display the two plots with a different color and marker. Use the same temperature values for the two plots. In the case of the luminosity ratio, use values from the above table for one plot, and values computed by the above model for the second plot. Your figure should resemble the plots of the model and data for a cooling cup of coffee shown in the last slide from lecture #3. Create vectors to store the data from the table, the temperature ratios T_star/T_sun and the predicted values of L_star/L_sun. Add axis labels, a title and legend to your figure, and use the axis command to set the range of values on the axes so that there is some space between the axes and plots. Remember that in an H-R plot, the temperature values are displayed in decreasing order on the horizontal axis. This can be accomplished in MATLAB by added the following statement:

    set(gca, 'XDir', 'reverse')

The data and model predictions will appear to be very close, but let's quantify the fit. A common measure of deviation between a set of data values and the predictions of a model is the root mean square error (rms error) defined by the following expression:

where d_i is the i^th data value (e.g. the luminosity ratio measured for the i^th star), p_i is the predicted i^th value (e.g. the luminosity ratio predicted from the model, for the i^th star), and n is the total number of data samples. The rms error captures the average difference between the measured and predicted values. Add code to your stars.m script to calculate the rms error and print its value. Note that all of the arithmetic operations needed to compute the rms error can be combined into one MATLAB statement!

Be sure to add some comments throughout your code file.

Optional: You're welcome to enhance your figure using properties to change the colors, fonts and markers, but this is not essential!

Note: Again, for your final submission, you do not need to hand in a hardcopy of your picture, only a copy of your stars.m code file.

¹This problem was adapted from: Gilat, Amos, MATLAB: An Introduction with Applications, Third Edition, John Wiley & Sons, 2008 (p. 151).
