Custom Geometry

The built-in geometry objects (spheres, boxes, cones, cylinders, etc) can do a lot of work for us, but it's important to be able to build a custom object if we choose.

In Revision 125 of Three.js, they made a radical change to the representation of geometry. The result is less intuitive for human programmers, but faster for the graphic card to process: performance won over ease of coding.

In CS 307, we will use the new way; since (as of Fall 2025), we are using R179. It's time.

I have a working example, below, of the new way.

But starting with the old way will clarify many concepts, so let's start there.

Custom Geometry the Old Way

Programming the old way, we

  • create a THREE.Geometry object
  • create a list of vertices as objects; e.g. new THREE.Vector3()
  • create a list of faces (triangles) also as objects; that is, new THREE.Face3(v1,v2,v3)
  • assign a surface normal to each vertex
  • assign texture coordinates to each vertex.

The Geometry and Face classes have been removed from Threejs. However, all the same information and concepts are there, so let's make sure we understand those first.

Vertices

We start by listing the vertices of our figure. Here's the beginning of defining the barn:

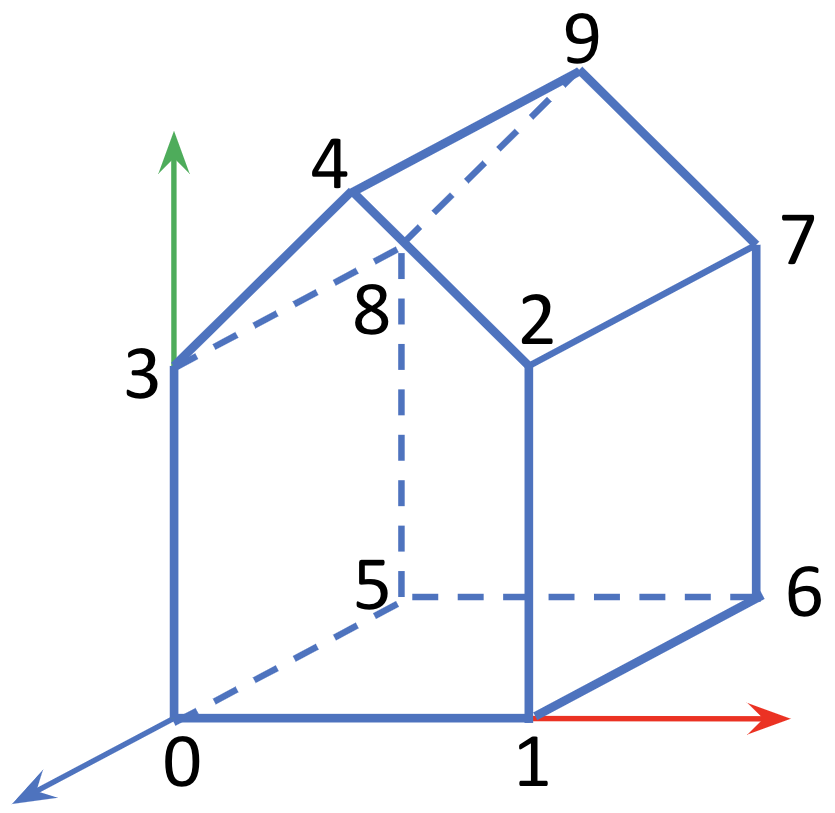

line drawing of the barn with some vertices coordinates of some barn vertices

The barn and some vertices.

Thanks to Ellen Hildreth for the figure.

  • vertex 0 is the lower left front corner of the barn, at the origin (0,0,0)
  • vertex 1 is the lower right front corner of the barn, at coordinates (30,0,0)
  • vertex 2 is the upper right front "shoulder" of the barn, at coordinates (30,40,0)
  • vertex 4 is the front "peak" of the barn, at coordinates (15,55,0)
  • etc

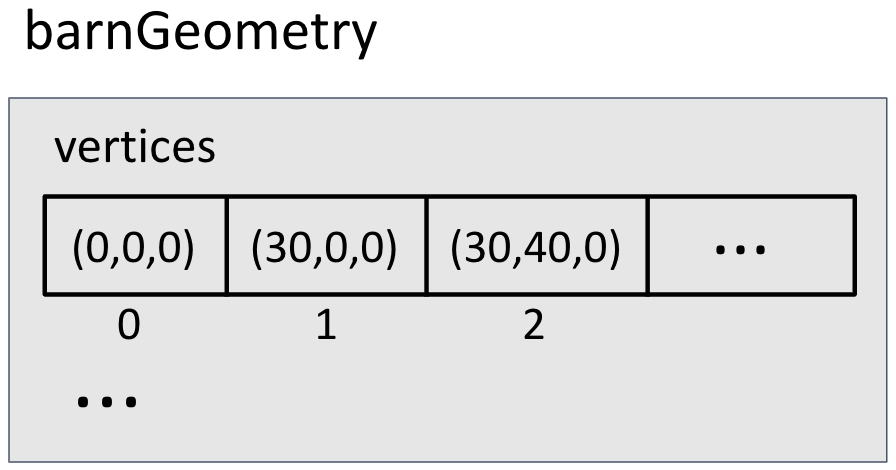

We can create these vertices like this:

var barnGeometry = new THREE.Geometry();
// add vertices to the barnGeometry.vertices array -
// indices of this array correspond to the above labels
barnGeometry.vertices.push(new THREE.Vector3(0, 0, 0));
barnGeometry.vertices.push(new THREE.Vector3(30, 0, 0));
barnGeometry.vertices.push(new THREE.Vector3(30, 40, 0));
...

Faces

A face is a triangle. It is created by listing three vertices, which is done by giving the index of each vertex in the array of vertices.

Keep in mind:

  • each triangular face has a front and back side
  • by default, Three.js only renders the front side (the back side is not rendered, for speed)

So how do you define which side is the front?

  • imagine you're looking at the side you want to define as the front side...
  • ... and list the three vertices in a counterclockwise order, as viewed from this side
  • Three.js will interpret this side as the front side

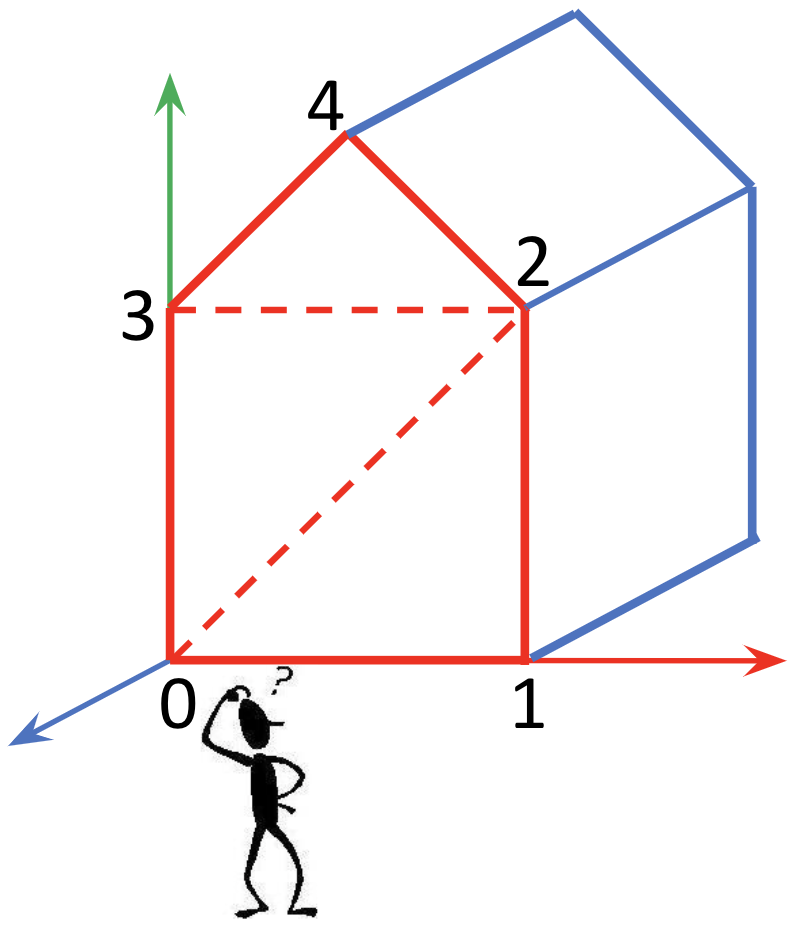

The front of the barn as viewed from outside has faces like (0,1,2), which is vertices 0 (the origin), 1 (the lower right corner) and 2 (the upper right shoulder).

Thanks to Ellen Hildreth for the figure.

// front side of each of these faces is outside the barn

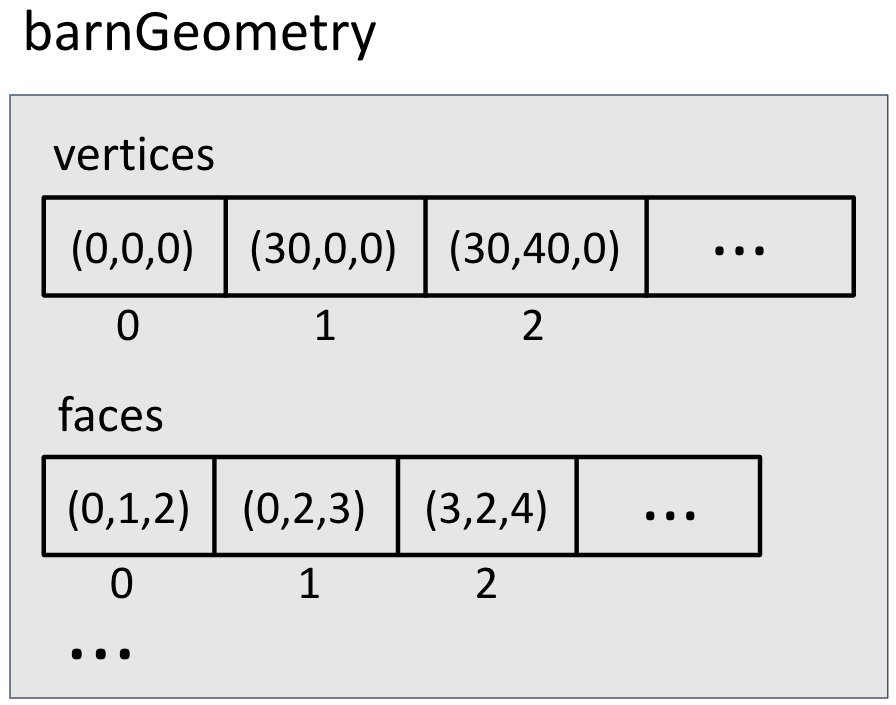

barnGeometry.faces.push(new THREE.Face3(0, 1, 2));
barnGeometry.faces.push(new THREE.Face3(0, 2, 3));
barnGeometry.faces.push(new THREE.Face3(3, 2, 4));
...

There are other steps, such as defining material indexes and such, but let's put that off for now and talk about defining geometry the new way. Fortunately, the concepts are all the same, but the implementation is different.

Transitioning

The following website explains the transition from geometry to buffergeometry

The page is not very long and has some good explanation and nice examples; highly recommended. Indeed, wherever I've visited the https://sbcode.net/threejs/ website, I've found good information (I have not read the whole thing yet).

Custom Geometry the New Way

Now, instead of the Geometry and Face classes, which have been removed from Threejs, there's BufferGeometry, where all the representations are buffers, each of which is a flat, typed array of numbers. (By "typed" I mean that the datatype of the elements is specified and uniform, say Float32, which is a 32-bit floating point number.) Since the graphics card knows that the datatype of all the elements in the array, it can skip checking the type and dispatching to code that is specific to a particular datatype.

The strategy for building a custom geometry is to:

  • build an array of JS dictionaries, where each dictionary represents all the information about a particular vertex. This allows us to put related information together in a way that is (usually) more intuitive than these flat typed arrays. Then,
  • iterate over the array of vertex information, transferring the information into separate arrays
    • an array for the position of the vertex
    • an array for the normal for the vertex
    • an array for the uv (texture coordinates) of the vertex
  • Finally, the data in these flat arrays gets transferred to typed buffer arrays.

An aside: remember that a particular vertex, say the lower left front vertex of a cube or the barn can have different surface normals, different color, etc, depending on whether it is participating as part of the front of the barn or the left side of the barn or the bottom of the barn. In this representation, those are different vertices. They happen to have the same position, but they differ in other properties.

Threejs Document on Custom Geometry

You're now ready to read the the Threejs information on custom buffer geometry. It has some excellent pictures, and a good explanation about what makes a vertex different from another vertex, as in that aside above. That page is part of the required reading for this topic. Please read it carefully.

You can stop (if you want) when you get to the paragraph starting:

We can use TypedArrays from the start instead of native JavaScript Arrays.

Hopefully, most of that code is clear to you. There are some JS tricks that you might not be familiar with. Let's discuss one trick.

Flatten

The Threejs reading about custom geometry used some coding that I will call flattening. It takes a data structure where all the information about a vertex (position, normal, and UV coordinates) is in one place (a dictionary) and distributes that data to separate, flat arrays.

The following code (taken from that page) iterates over the array vertices, each element of which is a dictionary. The code indexes into each dictionary, gets a sub-array and spreads the sub-array into separate components (numbers in this case), and pushes the components onto different arrays like positions and normals.

    const positions = [];
    const normals = [];
    const uvs = [];
    for (const vertex of vertices) {
      positions.push(...vertex.pos);
      normals.push(...vertex.norm);
      uvs.push(...vertex.uv);
    }

Suppose we have an array of dictionaries like this:

const vertices = [
  // front
  { pos: [-1, -1,  1], norm: [ 0,  0,  1], uv: [0, 0], },
  { pos: [ 1, -1,  1], norm: [ 0,  0,  1], uv: [1, 0], },
  { pos: [-1,  1,  1], norm: [ 0,  0,  1], uv: [0, 1], },

  { pos: [-1,  1,  1], norm: [ 0,  0,  1], uv: [0, 1], },
  { pos: [ 1, -1,  1], norm: [ 0,  0,  1], uv: [1, 0], },
  { pos: [ 1,  1,  1], norm: [ 0,  0,  1], uv: [1, 1], },

  // left
  { pos: [-1, -1, 1], norm: [ -1, 0, 0], uv: [1, 1], }
  ...
];

Notice that the first vertex and the last vertex have the same position (pos), but the first is part of the front and so has [0,0,1] as its surface normal while the last one is part of the left and so has [-1,0,0] as its surface normal.

If we "flatten" that array of dictionaries into separate arrays, the result is 3 "flat" arrays of numbers. Printing them in the JS console looks like this:

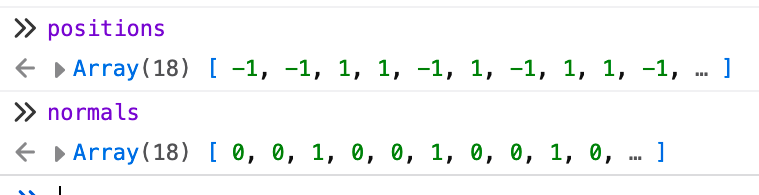

printed array of numbers

The last step is to take the flat arrays and copy them into typed arrays, and make those typed arrays into buffer attributes of the geometry object. That code looks like this:

// create the buffer attributes
const positionNumComponents = 3;
geometry.setAttribute(
    'position',
    new THREE.BufferAttribute(new Float32Array(positions), positionNumComponents));

I have implemented all that code into TW as TW.setBufferGeometryFromVertices. I won't show its code, because it's a copy of the code you already read in the Threejs document. We'll use it in a moment, after a brief detour to talk about reversing the flattening.

Reversing the Flattening

One way to understand the Threejs geometry is to reverse it: taking the buffer attributes and turning them back into collected information. I've written a function to do that, TW.geometryInfo. Let's try it on a plane, first:

gi = TW.geometryInfo(new THREE.PlaneGeometry(2));

That function returns a JS dictionary with a vertices key that is like the vertices array of dictionaries like we saw in the last section. The return value also has an array of indices, as described in the Threejs reading.

If we pretty-print the geometry info, as follows,

TW.printGeometryInfo(gi);

the result could look like this:

vertices
0: {pos: -1,+1,0, norm: 0,0,1,    uv: 0,1}
1: {pos: +1,+1,0, norm: 0,0,1,    uv: 1,1}
2: {pos: -1,-1,0, norm: 0,0,1,    uv: 0,0}
3: {pos: +1,-1,0, norm: 0,0,1,    uv: 1,0}
indices
0 2 1
2 3 1

The "vertices" part should be intuitive. The vertices look like this:

a box with a diagonal line from the upper right to the lower left. The corners in clockwise order from the upper left corner are labeled 0, 1, 3, and 2.

You'll notice that they all have the same z coordinate (zero), the same normal (0,0,1) but their UV coordinates differ. Note that the UV value of (0,0) is at the lower left corner; when flipY is true, the image is inverted so that the image's upper left will be at the upper left corner.

If we were to build this plane geometry by hand, we could do it as follows:

function makePlaneGeometry(width, height) {
    const w = width/2;
    const h = height/2;
    const norm = [0,0,1];
    const vertices = [
        {pos: [-w,+w,0], norm: norm, uv: [0,1]},
        {pos: [+w,+w,0], norm: norm, uv: [1,1]},
        {pos: [-w,-w,0], norm: norm, uv: [0,0]},
        {pos: [+w,-w,0], norm: norm, uv: [1,0]},
    ];
    const geometry = new THREE.BufferGeometry();
    TW.setBufferGeometryFromVertices(geometry, vertices);
    geometry.setIndex([
        0, 2, 1,
        2, 3, 1
    ]);
    return geometry;
}

Notice the call to TW.setBufferGeometryFromVertices which we talked about at the end of the last section. It's the code that I copied from the Threejs custom geometry page.

Here's a demo that shows two planes, one using the builtin geometry object and the other which we built using the custom geometry techniques.

custom-geometry/plane

If you're feeling comfortable with the reading so far, you can keep going. If not, you might take a detour to read this optional supplement about vertices and indices.

Custom Geometry Box

The code described in the Threejs page about custom geometry is very cool, but it doesn't have all the features we want. In particular, there are lots of triangles, but no sides, so we can't have, say, a cube with sides that are different colors. (Recall that with Threejs boxes, we can supply a different material for each side of the box.)

Here's what we might want:

custom-geometry/box

Be sure to click and drag with the mouse, to look at the box from multiple directions. (You'll notice that I omitted the bottom; we'll do that in class.)

In the case of a box, each side is a pair of triangles, and each side can get a different material. However, in general, a group of triangles might not be something that we would call a "side," so Threejs uses a different terminology: groups.

So, the geometry object can also have a list of groups. Fortunately, these are not "flattened" like the vertex information, so we can easily just create a geometry and then look at the groups property. For example, for a box:

box = new THREE.BoxGeometry();
box.groups;

Try copy/pasting that into a JS console and looking at the resulting array. Here's a screenshot of what you might see:

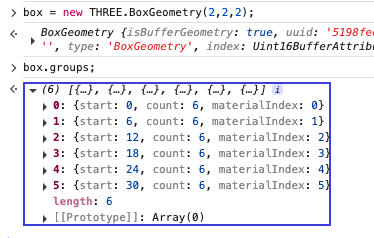

screenshot of groups for a box geometry

The start property is the first index in the indices array. The count property is how many consecutive indexes belong to the group. Here, they are all 6 because we have two triangles of three vertices each in every group. The materialIndex is, as you've probably guessed, the index of this group in the list of materials supplied to the mesh. So, above, we can see there are six materials, and the first material goes on the first 6 vertices, which are the first two triangles. You'd have to look at the vertex information to figure out where this is on the cube, so it's not that everything is clear. But sometimes we can make some good guesses.

For example, if we did that with a cylinder, we see:

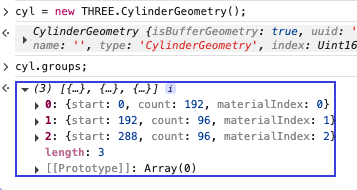

screenshot of groups for a cylinder geometry

For the cylinder, we see that there are three groups: the first is the side of the cylinder (192 vertices), and the rest are the two circular ends of the cylinder (96 vertices each).

So, sometimes it's fairly easy to infer the material groups for a geometry object.

If we are ever puzzled, we can also just do an experiment: supply an array of materials, each of different color, create a mesh, and look at where the colors land on the rendered object.

Fancier Coding

The coding we've developed so far for custom geometry is straightforward, simple, but tedious, because there are so many vertices and so much repetition. For example, many vertices have the same normal. (All for front vertices of a box.) Many vertices have the same position as other vertices. (The front upper left vertex of a box occurs three times.) We could copy/paste/edit these vertices but typos will be hard to debug.

It would be nice to take advantage of these repetitions to make the code more robust.

In the code for the custom box

custom-geometry/box

I introduce a few ideas:

  • A list of positions, so I can get the spatial coordinates right and then just use indexes into this array for the positions.
  • A quad is a side of the box, which will also be a material group. It has:
    • four positions, which are given as indexes into the list of positions
    • a normal, which is applied to all four vertices
    • a material index, which is used for its group
  • we'll build the array of vertex indexes as we go along, building each quad, rather than listing them all at the end.

I also used the Threejs .addGroup() method, which adds a group to the geometry object.

The resulting code looks like this:

import * as THREE from 'three';
import { TW } from 'tw';

export function boxGeometryWithMaterialGroups (xsize, ysize, zsize) {
    const x2 = xsize/2, y2 = ysize/2, z2 = zsize/2;
    // eight locations. The first four are given long-winded names, to
    // make the code easier to read, and corresponding to the names in
    // the reading.
    const v0_upper_left = [ -x2, +y2, z2 ];
    const v1_lower_left = [ -x2, -y2, z2 ];
    const v2_lower_right = [ x2, -y2, z2 ];
    const v3_upper_right = [ x2, +y2, z2 ];
    // array of 8 locations/points
    const p = [ v0_upper_left,
                v1_lower_left,
                v2_lower_right,
                v3_upper_right,
                // the ones in the back
                [ +x2, +y2, -z2 ],
                [ +x2, -y2, -z2 ],
                [ -x2, -y2, -z2 ],
                [ -x2, +y2, -z2 ]];

    // We'll fill these arrays with our helpers
    const vertices = [];
    const indices = [];

    // group code modeled on BoxGeometry
    // https://github.com/mrdoob/three.js/blob/master/src/geometries/BoxGeometry.js
    // Each group corresponds to a "face" (flat surface of the
    // object), which consists of a set of triangles.  We need to
    // count the number of triangles in each group, and then do
    // addGroup() at the end of a face.  Each face/group will have its
    // own normal and materialIndex

    let bg = new THREE.BufferGeometry();
    bg.type = 'BarnGeometry';

    let groupStart = 0;

    // let's use quad with the corners starting at the upper left of
    // the texture and going counterclockwise
    function quad(i1, i2, i3, i4, normal, materialIndex) {
        let v1 = { pos: p[i1], norm: normal, uv: [0, 0] };
        let v2 = { pos: p[i2], norm: normal, uv: [0, 1] };
        let v3 = { pos: p[i3], norm: normal, uv: [1, 1] };
        let v4 = { pos: p[i4], norm: normal, uv: [1, 0] };
        let n = vertices.length; // index of v1
        vertices.push(v1, v2, v3, v4);
        // these are the two triangles
        indices.push(n, n+1, n+2);
        indices.push(n, n+2, n+3);
        let numVertices = 6;
        bg.addGroup(groupStart, numVertices, materialIndex);
        groupStart += numVertices;
    }

    quad(0, 1, 2, 3, [0,0,1], 0); // front side (+z side)
    quad(3, 2, 5, 4, [+1,0,0], 1); // +x side
    quad(0, 3, 4, 7, [0,+1,0], 2); // top (+y side)
    quad(7, 6, 1, 0, [-1,0,0], 3); // -x side
    quad(4, 5, 6, 7, [0,0,-1], 4); // back

    // Whew! Now, build the rest
    TW.setBufferGeometryFromVertices(bg, vertices);
    bg.setIndex(indices);
    return bg;
}

We'll discuss this more in class.

Summary

If we need to create a custom geometry, Threejs has tools to do so, using many of the concepts we understand, but the implementation is designed for speed and efficiency of execution, not the convenience of the programmer.

  • create a THREE.BufferGeometry object
  • populate its attributes with flat typed arrays of numbers
    • position
    • normal
    • uv
  • optionally, populate its index property with an array of indexes into the arrays of vertex information

One strategy is to start with structured data about vertices and then flatten that data into these buffers.

The geometry object can also have a groups property if different materials can be applied to different groups of triangles.
